 Mini
1500 |
|

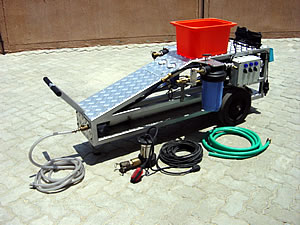

The AB Mini 15 is a very simple yet smart portable R.O. unit
which is built to operate from a standard 13 amp. 220-volt
50hz. power supply. (60 hz. also available) A diesel/gasoline
engine powered variant is also available for areas with no
electricity. The mini 15 is simple to operate & requires approximately
30 minutes for an average person to utilize & understand.
The unit incorporates as standard, a disposable cartridge
filter at input, a U.V. sterilizer for destroying bacterial
presence, an R.O. module, a high pressure pump, activated
carbon, & a product flow meter. The Mini 15 also includes
a safety valve for system protection. The operator can enslave
the unit to operate manually from a surface water source such
as rivers, or automatically onto a source/product tank. The
AB Mini 15 can purify water with a TDS level of up to 6,000
ppm at 30 Deg C. The capacity of the unit will increase considerably
if the source water TDS level was less than the maximum.
|
230
Liters/hr |
Portable
Water Purifier
|
| Pumping
Station |
|
| Specifications
* |
| Type |
: |
Brackish
water up to TDS level of 6,000ppm. |
|
| Source |
: |
Open
intake. |
| Pre-filtration |
: |
Cartridge
filters. |
| Main
filter |
: |
R.O.
Module. |
| Sterilization |
: |
UV
sterilizer. |
| Aft-filtration |
: |
Activated
Carbon Cartridge Filter. |
| Power
|
: |
13
amp. 220 volt, 110 volt, diesel, or gasoline engine. |
| Suction |
: |
Floating
pump for out-door units.
Centrifuge pump for in-door units. |
| Dosing |
: |
Antiscalant.
Others optional. |
| Weight |
: |
Approximately
120 kg. (No options – electric version). |
| Applications
|
: |
Water
Purification, Pumping station. |
| |
|
|
| *
AB Projects reserves the right to change or vary specifications
without prior notice. |
|
|
|
